Home > Products > Wifi Module > 150Mbps high power 802.11n Realtek 8188EU/MT7601 wireless wifi module

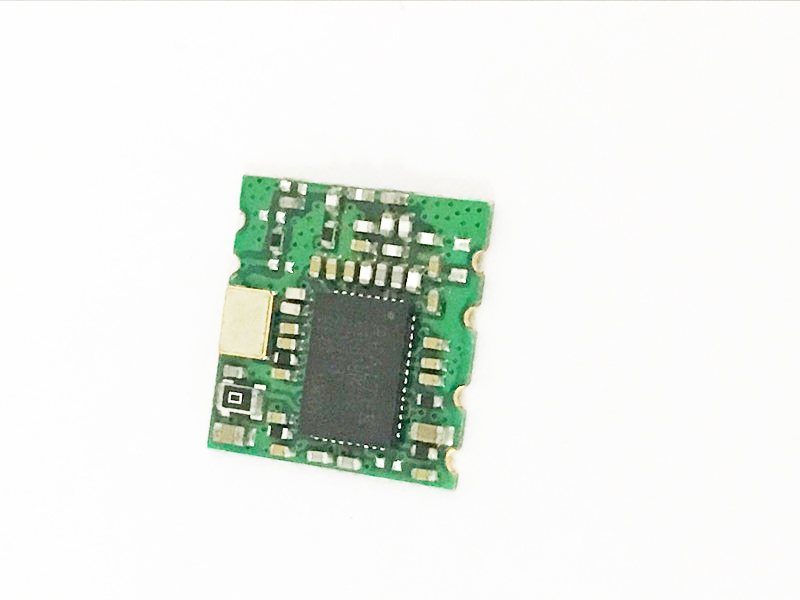

150Mbps high power 802.11n Realtek 8188EU/MT7601 wireless wifi module

Product Description

150Mbps high power 802.11n Realtek 8188EU /MT7601 wireless wifi moduleProduct Description Product IntroductionThe Realtek RTL8188EU is a highly integrated single-chip IEEE802.11 b/g/n/ac 1T1R USB 2.0 WLAN controller. It combines a WLAN MAC, a 1T1R capable WLAN baseband, and WLAN RF in a single chip, The RTL8811Au provides a complete solution for a high throughput performance integrated wireless LAN Specifications

Item

Description

Chipset

RTL8188EU

Interface type

USB2.0

Size(L*W* H)

23*17*1mm(L*W*H) ,Tolerance:+/-0.2mm

Power supply

DC3.3V (±5%),400mA(Max)

Standards

IEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n, IEEE 802.11ac

Frequency  range

2.4-2.4835GHZ, 5.15-5.85GHZ

Modulation Types

802.11b:CCK,DQPSK,DBPSK;

802.11a/g/n:BPSK,QPSK,16-QAM,64-QAM

802.11ac:BPSK,QPSK,256-QAM,64-QAM, 16-QAM

Working mode

Infrastructure , Ad- Hoc

Data transfer rate

1,2,5.5,6,11,12,18,22,24,30,36,48,54,135,150 up to 433.3Mbps

Sensitivity @ PER

1M:-95dBm@8%PER;

6M:-90dBm@10%PER;

11M:-86dBm@8%PER;

54M:-72dBm@10%PER;

135M:-70dBm@10%PER

433.3M:-51dBm@10%PER (Tolerance:+/-2dB)

RF Power

18dBm@11b;

15dBm@11g;

13dBm@11a;

13dBm@11n;

11dBm@11ac (Tolerance:+/-2dB)

Antenna type

Connect to the external antenna through the IPEX connector

Operating temperature

Work temperature : -10°C ~ 50°C ;
Storage temperature : -40°C ~70°C

150Mbps high power 802.11n Realtek 8188EU/MT7601 wireless wifi module150Mbps high power 802.11n Realtek 8188EU/MT7601 wireless wifi moduleApplication range:Tablet / notebook
Advertising machine /TV board
OTT/IPTV/DVB/STB
DV/ IPC/Mini driving recorder / doorbell
Smart TV / intelligent projector Pico
VR/AR terminal
Wireless storage
Printer /POS machine / electronic said
Vehicle mounted front / rear terminal
UAV / robot
Intelligent Gateway
Toys
Lighting lamps / intelligent street lamps
Smart home appliances / appliances
Instrument and meter (water, electricity, gas)

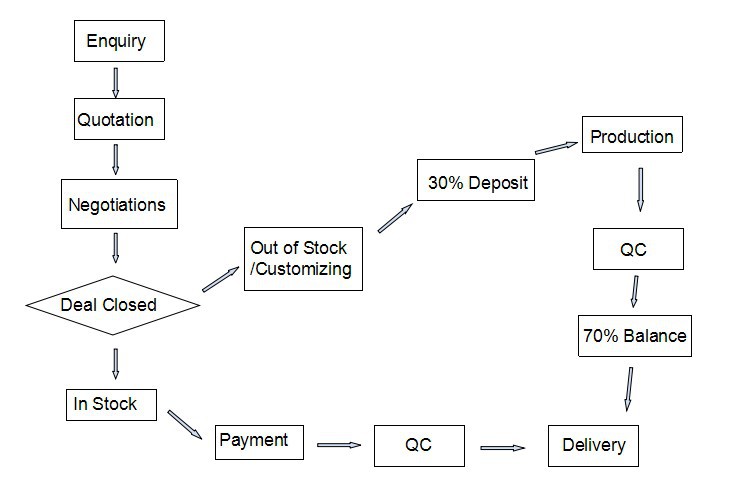

Smart city and other consumer electronic products Our ServicesWhy Choose US?Our Top Quality:strong R&D Group to provide you the most qualified productsyears in wirelesss industry area to give us rich experienceOur Professional Services:OEM&ODM approved well-trained and experienced staffs answer your inquires within 24hours with fluent Englishguarranty for 12monthsgiving you the best and detailed solution Company Information Company Information:Shenzhen Xindaba Electronics Co.,Ltd is a professional manufacturer of wireless network card / Wifi Usb adapter, our main products covers 150Mbps Mini Ralink RT5370/MTK 7601, Ralink RT5370/MTK7601, 600Mbps 2.4G / 5G dual band MTK 7610 and RTL 8811AU wifi dongle. We have our own R&D team, there have 2-3 new items coming out per year. How to make order   1. send the message or mail to us, we'll reply to you soon.2. call us.150Mbps high power 802.11n Realtek 8188EU/MT7601 wireless wifi module
